Wood Patchwork House by Peter Kostelov

This riverside summer house in Tverskaya, Russia has a surface divided into rectangles and clad in an assortment of wooden slats painted in different colours.



Wood Patchwork House 1 - Interior Architecture Art



Architect: Peter Kostelov
Structural Analysis: A. Lyalyin
Furniture: Vladimir Kostelov
Wood Construction: zao “Orbat”, A. Tolstoy
Location: Alexino village, Konakovsky District, Tverskaya, Russia
Site area: 86 sqm
House area: 133 sqm
Terraces area: 48 sqm
Design Year: 2005-2006
Construction Year Year: 2007-2009
Photographs: Alexey Knyazev

Awards

  • Winner of International Architect Award  «ARCHIP 2009» in the category «Private House», (Traditions)
  • Winner of Russian Wood Architect Award “ARCHIWOOD 2010″
  • Grand Prize XII International Festival of Architecture and Interior Design “Under the Roof of Home”  2010

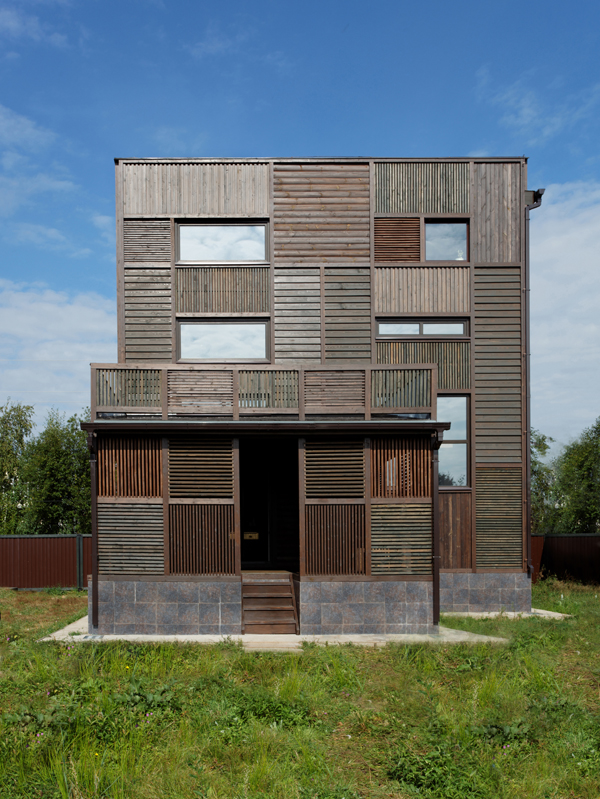

Wood Patchwork House 2 - Interior Architecture Art

The house overlooks the Volga river and was built as a second home – dacha in Russian – and has three storeys to allow guests the best view of the river from their window.

The clients asked for the building to comfortably house four adults, some of whom would work from home, and a few guests. It contains a kitchen, dining room, guest rooms and bedrooms, multiple bathrooms, a studio, two wardrobe rooms and two verandas. The interior carries on the theme of slatted wood, and the living spaces are arranged around a central wooden staircase.

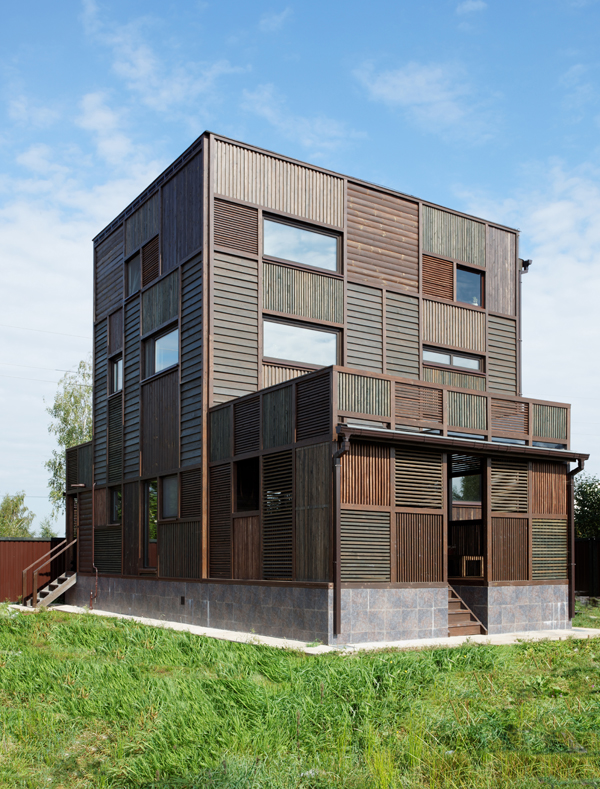

Wood Patchwork House 9 - Interior Architecture Art

Conditions

The plot where the future summer cottage was planned to be built  is located quite near the Volga River in a small village in Tverskaya Region, Konakovsky District and is on the way to Saint Petersburg, 140 km from Moscow.

The blocked foundation of 6,500 mm times 8,700 mm size was already laid there. Thus it set the gabarit size of future cottage (Russians call them “dacha”). Extra supports were specially made for open space terrace and shed. Frame and wainscot technology was implemented in the construction. Panels being heated by insulation materials and pellicle are made from squared timber 140mm times 45mm size which are inside and outside trimmed by OSB followed by finishing.

Why three levels cottage? Firstly, terrific view of the Volga is available only when one is on the 3rd floor. Secondly, hardly would it be possible to place all purpose rooms only on two floors.

Wood Patchwork House 3 - Interior Architecture Art

Wood Patchwork House 6 - Interior Architecture Art

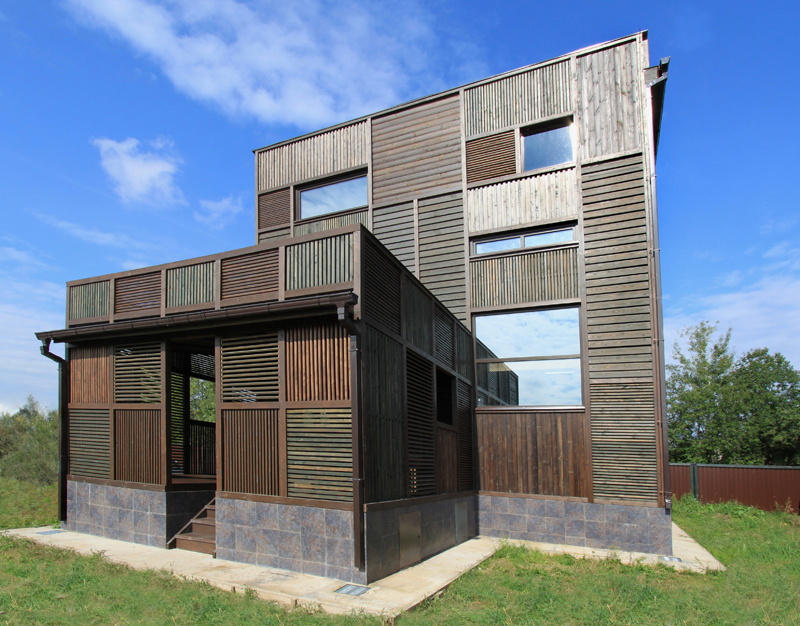

Wood Patchwork House 8 - Interior Architecture Art Wood Patchwork House 10 - Interior Architecture Art



Art

Artistic design of the house is a combination of simple layout of  the house with clear functioning of it and a facade composed of various shape and color wooden patchworks.Practically all types of trimming are being implemented here.

a) traditional wooden overlapping planks as well as just wooden planks;
b) modern molded board, forged square timber;
c) unconventional trimming for which spade hafts and square timber of various section were implemented.

To reach desirable effect trimming fragments were painted in different shades of brown and were fixed at various angles so that the same fragments would reflect the sunlight in different ways. The source of it goes back to Soviet era style, when private house construction industry used to be rundown and backward, which can be explained by many reasons.

Those who managed to build so called “dachas” implemented practically all handy materials which happened to be available. As a result the houses looked like patched blankets consisting of different fragments which clearly showed who the owner of the “dacha” were precisely at the moment of construction.

Wood Patchwork House 4 - Interior Architecture Art

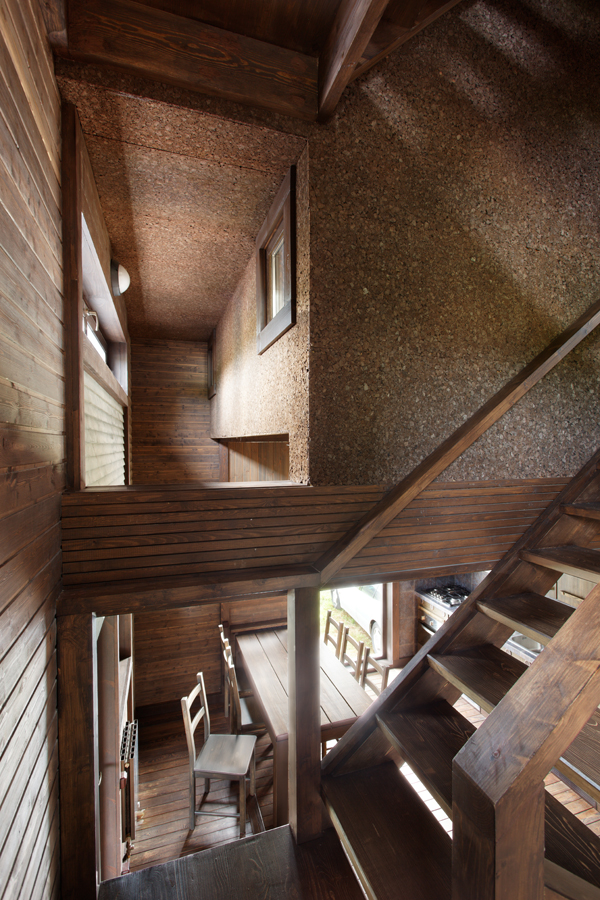

Wood Patchwork House 5 - Interior Architecture Art

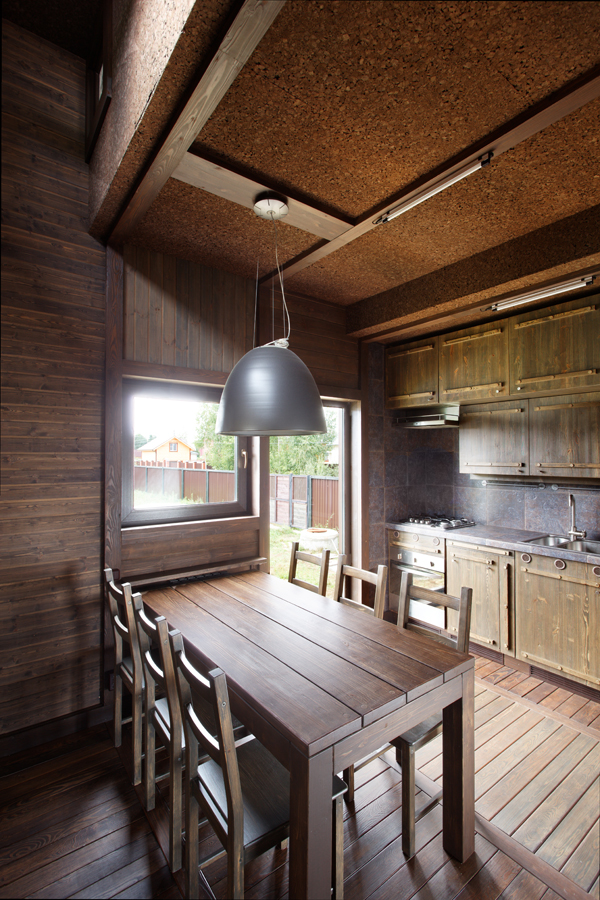

Wood Patchwork House 14 - Interior Architecture Art



Function

The design envisages comfortable living of two adult couples-parents and grown up children if to work at home and permanently live here.

Apart from this the family hosts a few guests too. So the house looks like this:

  • Ground floor: kitchen and adjusting dining room, quests room, boiler room, bath and shower, summer veranda.
  • First floor: two bedrooms, two wardrobe rooms, washing room, two toilet and shower rooms.
  • Second floor: work shop or studio, sauna, summer veranda, toilet and shower room.

Wood Patchwork House 7 - Interior Architecture Art

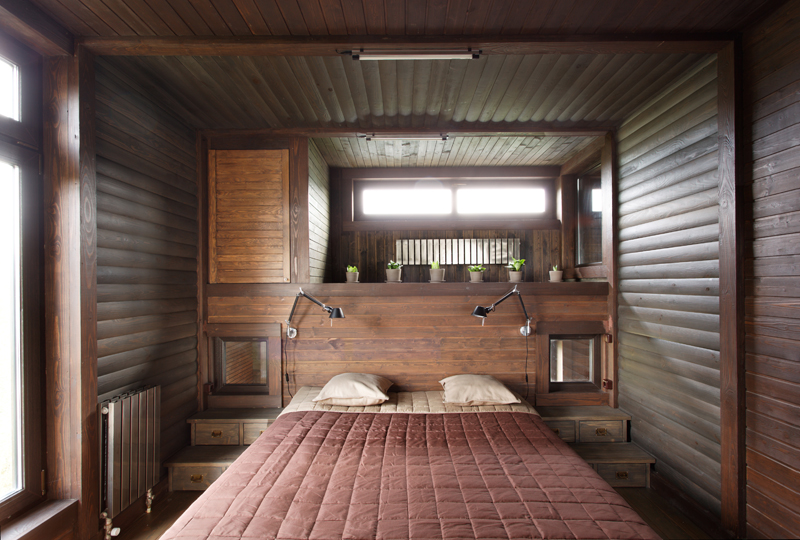

Wood Patchwork House 12 - Interior Architecture Art

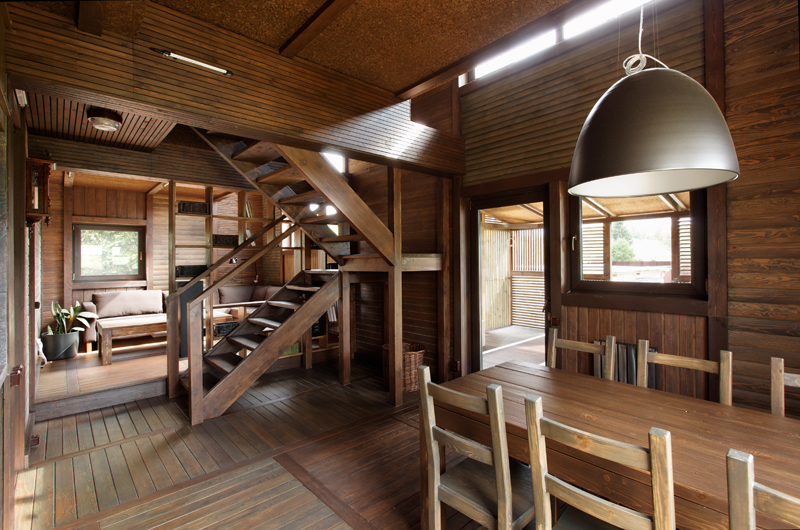

Wood Patchwork House 11 - Interior Architecture Art

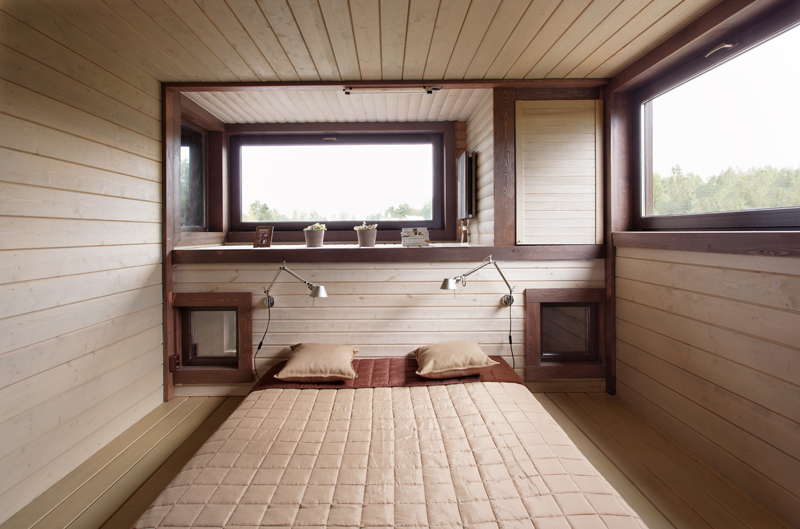

Wood Patchwork House 13 - Interior Architecture Art

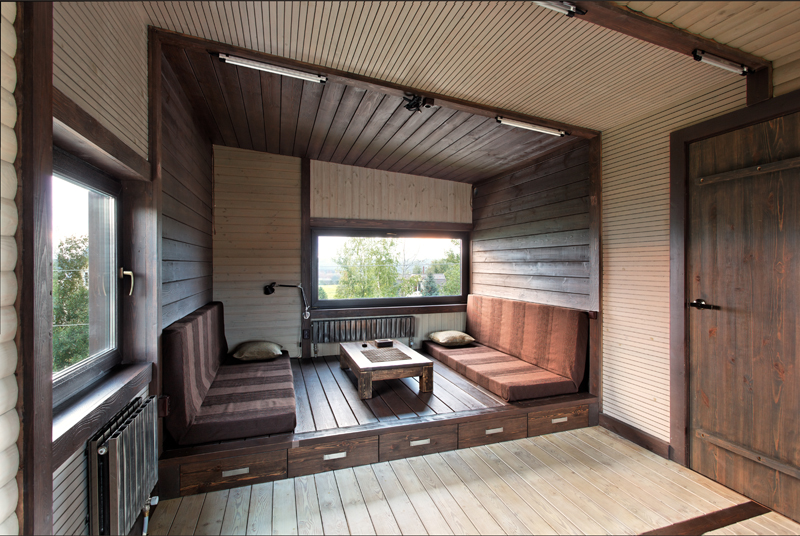

Wood Patchwork House 15 - Interior Architecture Art





Construction

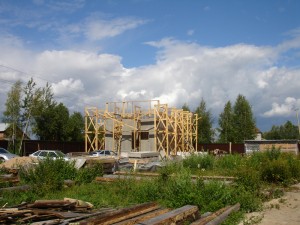

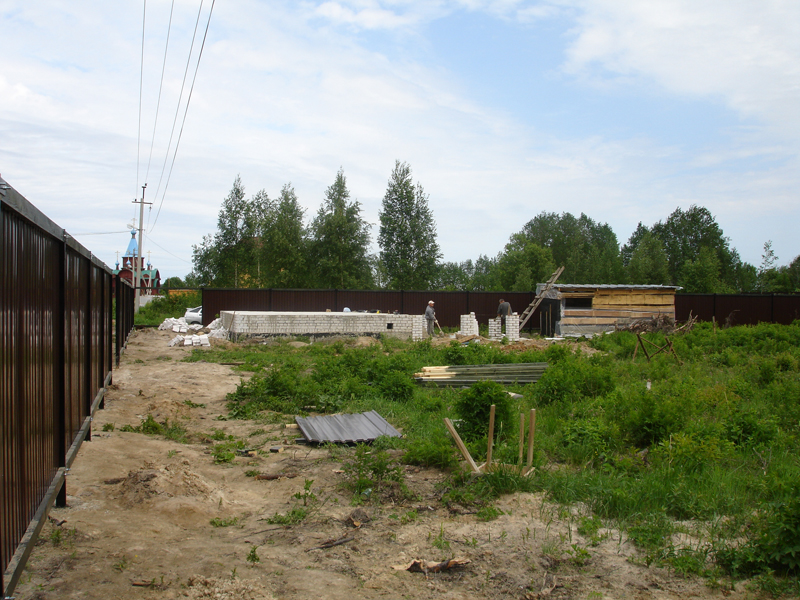

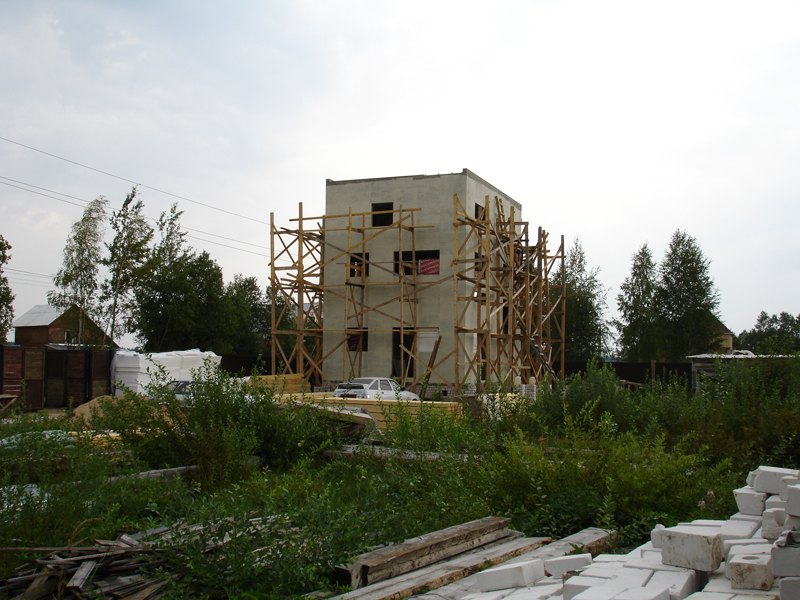

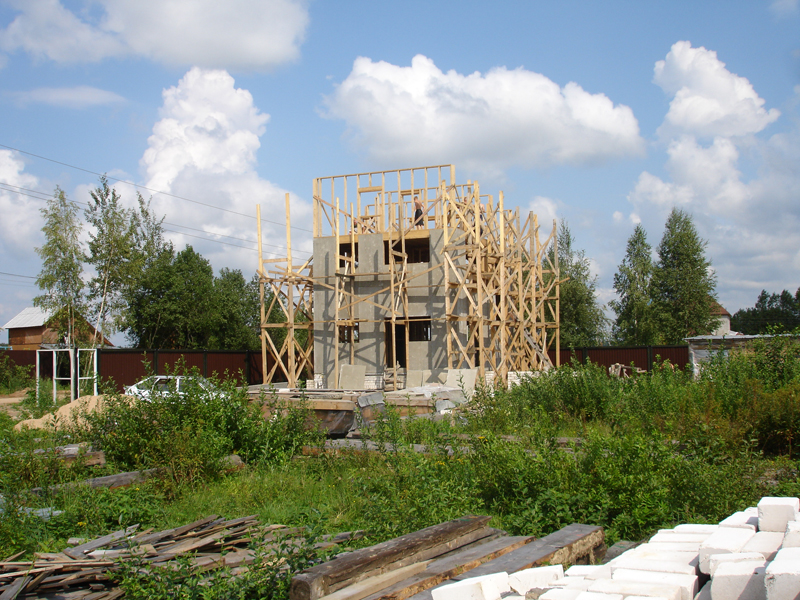

Wood Patchwork House - Construction 1 - Interior Architecture Art Wood Patchwork House - Construction 2 - Interior Architecture Art Wood Patchwork House - Construction 3 - Interior Architecture Art Wood Patchwork House - Construction 4 - Interior Architecture Art Wood Patchwork House - Construction 5 - Interior Architecture Art Wood Patchwork House - Construction 6 - Interior Architecture Art







Plans

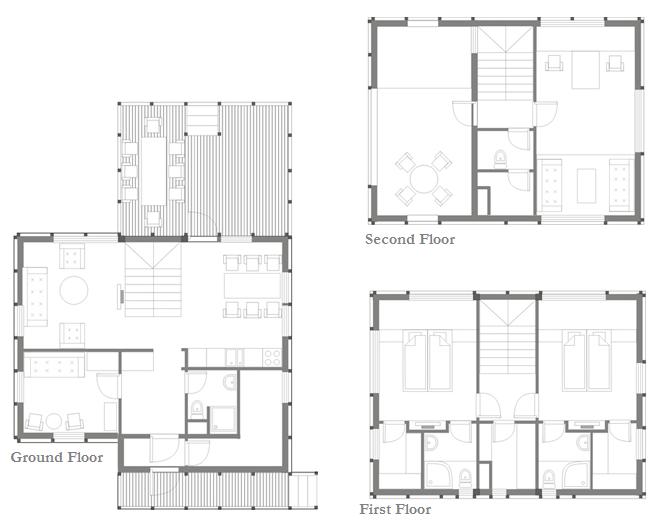

Wood Patchwork House - Plan - Interior Architecture Art







Elevations

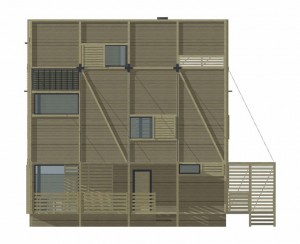

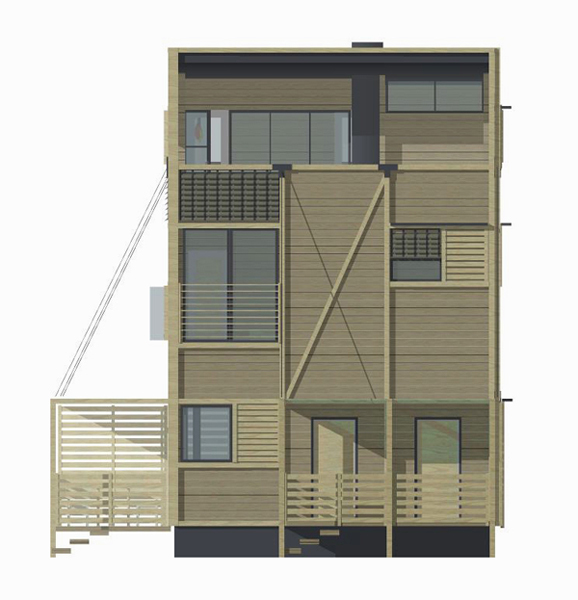

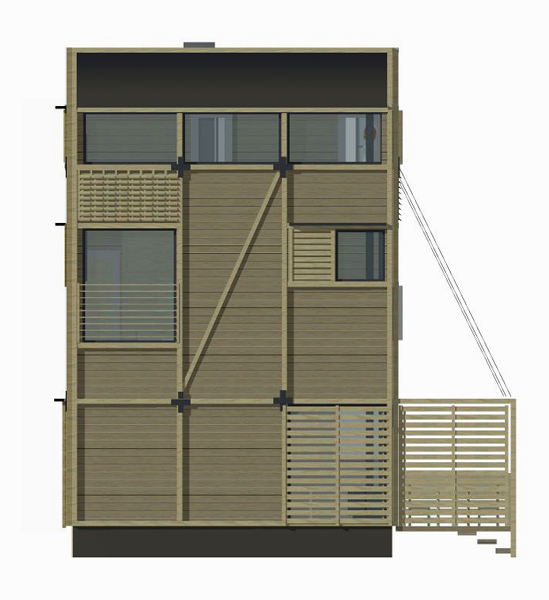

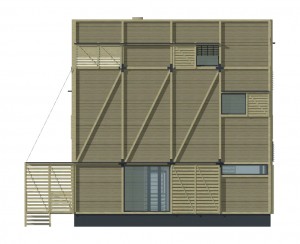

Wood Patchwork House - Elevation 1 - Interior Architecture Art Wood Patchwork House - Elevation 3 - Interior Architecture Art Wood Patchwork House - Elevation 2 - Interior Architecture Art Wood Patchwork House - Elevation 4 - Interior Architecture Art
