Safe House by Robert Konieczny KWK Promes

The house is situated in a small village at the outskirts of Warsaw. The surroundings are dominated with usual “Polish cubes” from the sixties and old wooden barns.



Safe House 1 - Interior Architecture Art



Architect: Robert Konieczny

Collaboration: Marcin Jojko, Łukasz Zadrzyński
Interior Design: Magdalena Radałowicz – Zadrzyńska
Structure Engineering: Grzegorz Komarus, Aleksandra Pałach
Location: Warsaw
Site Area: 2500 sqm
Usable Floor Area: 567 sqm
Volume: 1719 m3
Design: 2004-2005
Construction: 2005-2009
Photographs: Olo Studio



Safe House 2 - Interior Architecture Art

Safe House 3 - Interior Architecture Art



Idea

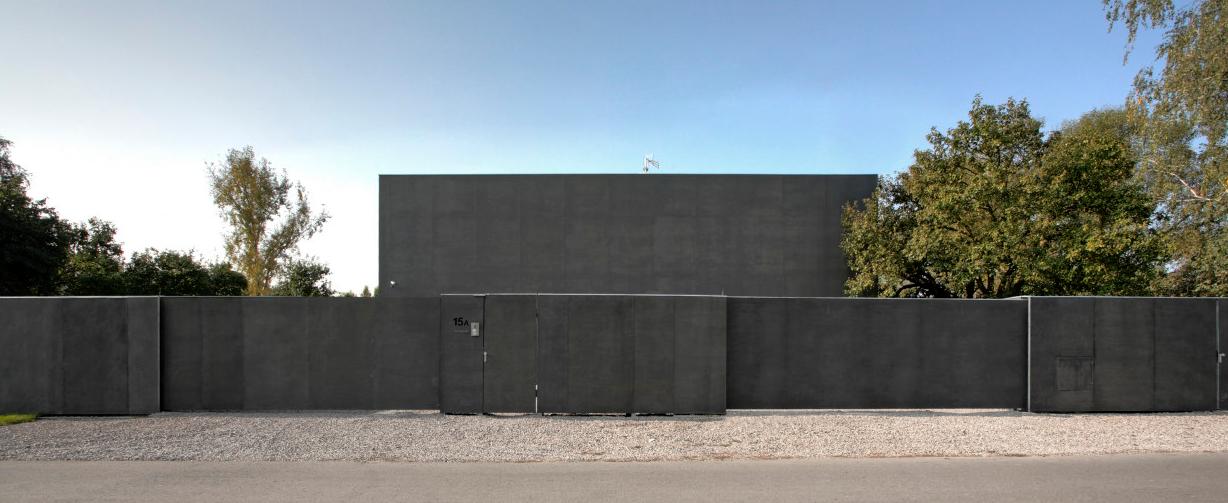

The clients’ top priority was to gain the feeling of maximum security in their future house, which influenced the building’s outlook and performance. The house took the form of a solid rectangular prism in which parts of the exterior walls are movable.

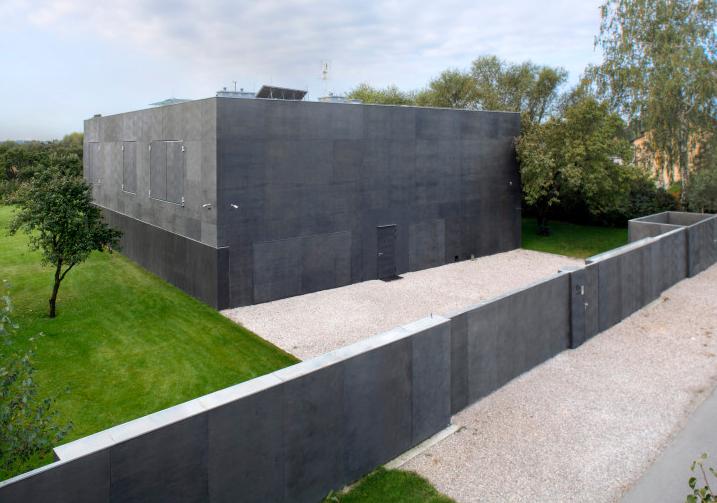

Safe House 4 - Interior Architecture Art

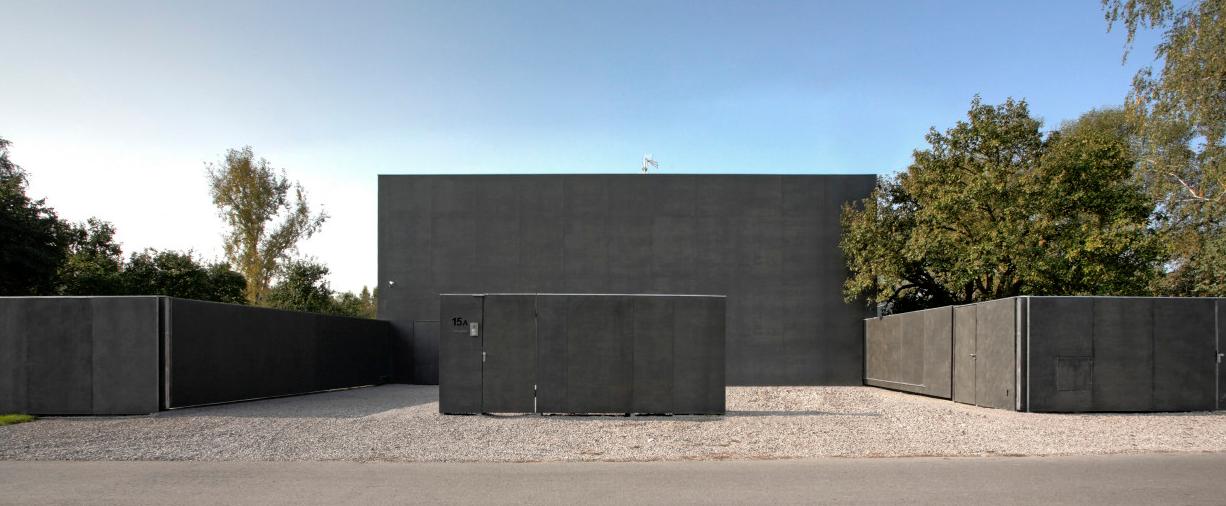

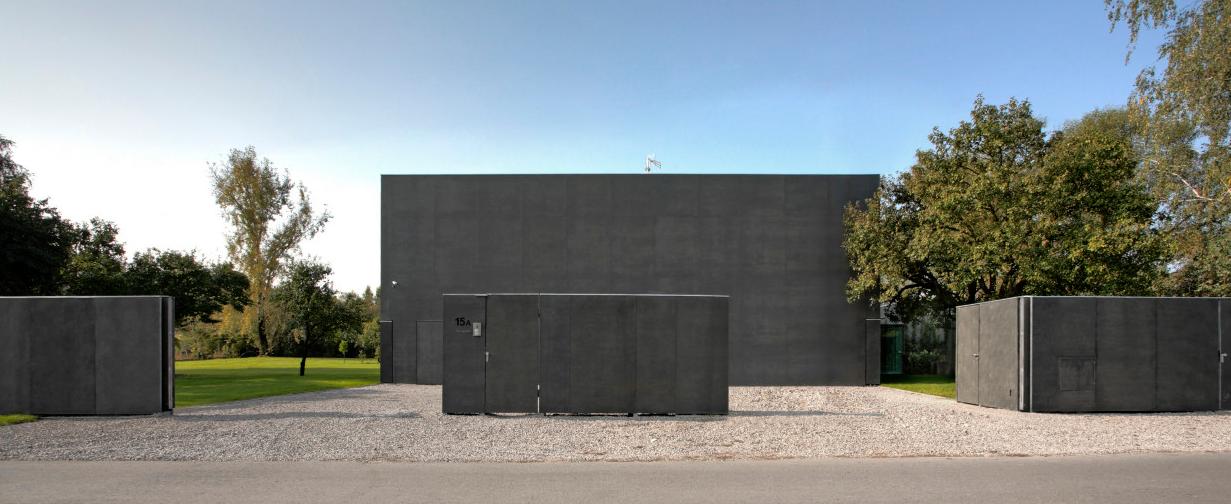

When the house opens up to the garden, eastern and western side walls move towards the exterior fence creating a courtyard, also known as “pre-entering area”.  After crossing the gate one has to wait in this safety zone before being let inside the house. In other words, one cannot enter the house or the garden any other way but through the main door. At the same time, there is no risk of children escaping to the street area in an uncontrolled way while playing in the garden.

Safe House 5 - Interior Architecture Art



Movable Elements Interfering With The Site Layout

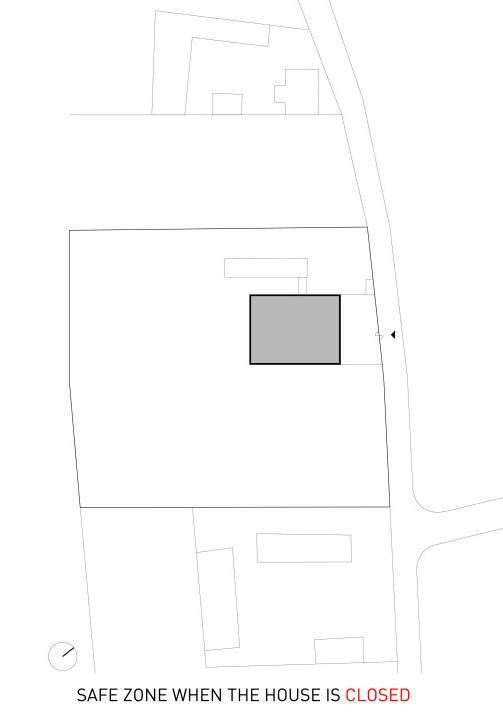

The innovation of this idea consists in the interference of the movable walls into the urban structure of the property. As a result, when the house is closed (at night for example) the safety zone is limited to the house’s outline. In the daytime, as a result of the walls opening, it extends to the garden surrounding the house.

Safe House 6 - Interior Architecture Art

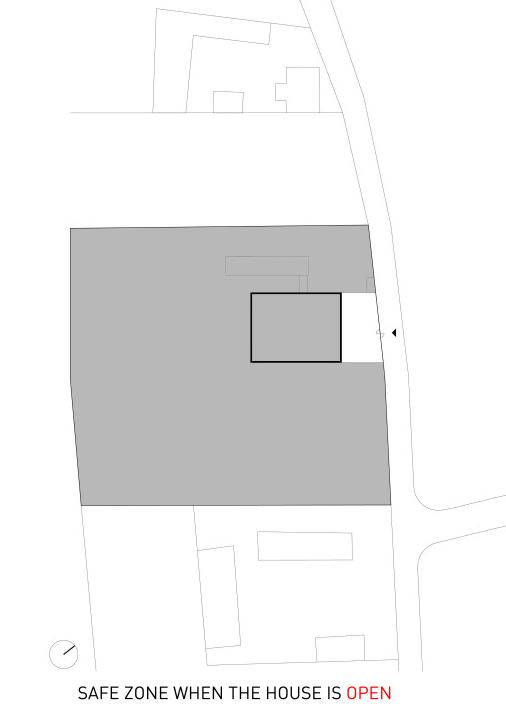

Safe House 7 - Interior Architecture Art

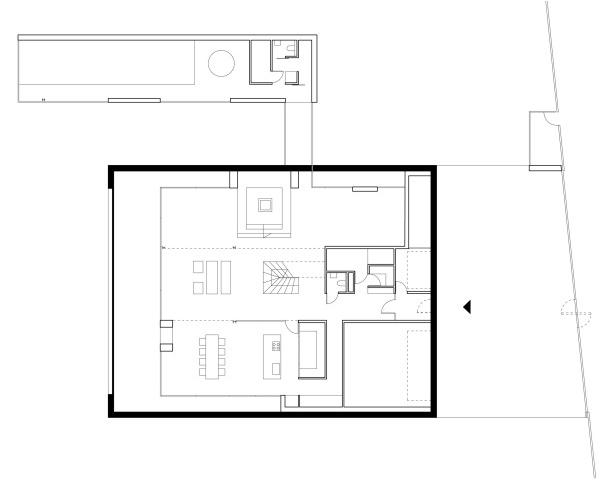

Safe House 8 - Interior Architecture Art

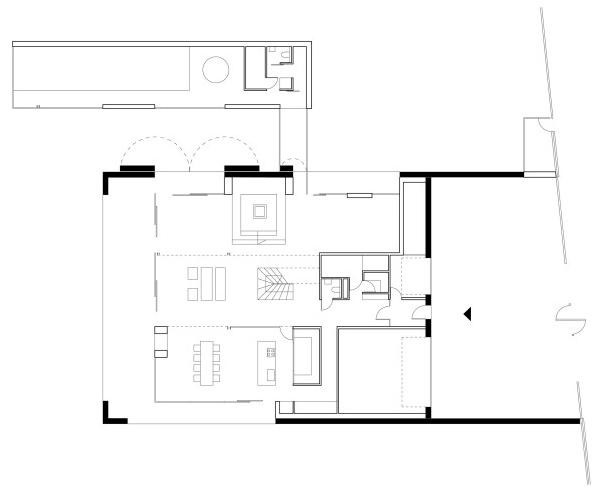

Safe House 9 - Interior Architecture Art

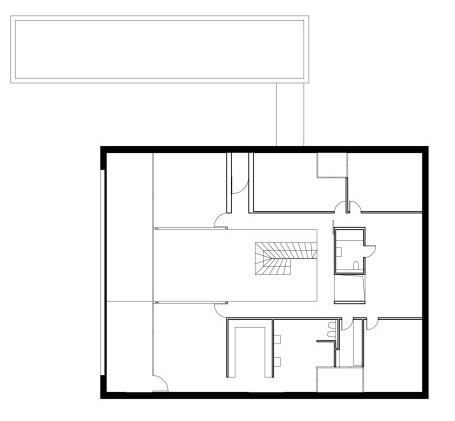

Safe House 10 - Interior Architecture Art

Safe House 11 - Interior Architecture Art



Mechanic…

Accomplishment of this idea required the use of technically complex solutions. The most significant are the sliding walls (both 2.2 m high, 22 and 15 m long), which allow to interfere with the urban structure and determine the safety zone of the plot.

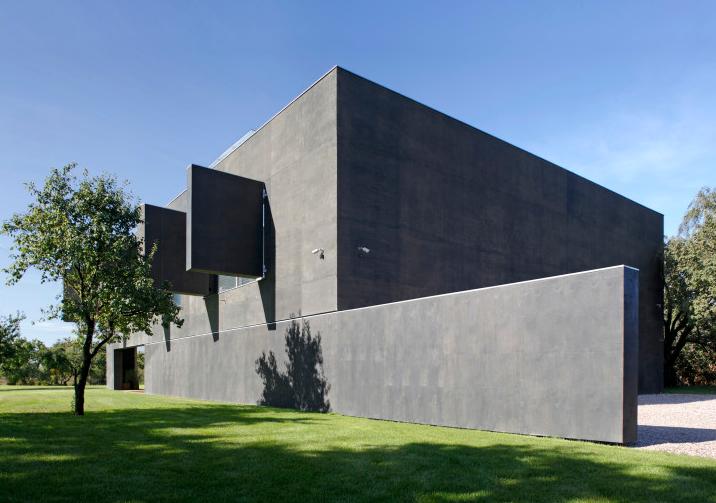

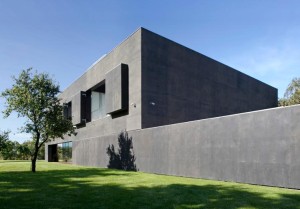

Safe House 13 - Interior Architecture Art Safe House 14 - Interior Architecture Art













Safe House 12 - Interior Architecture Art

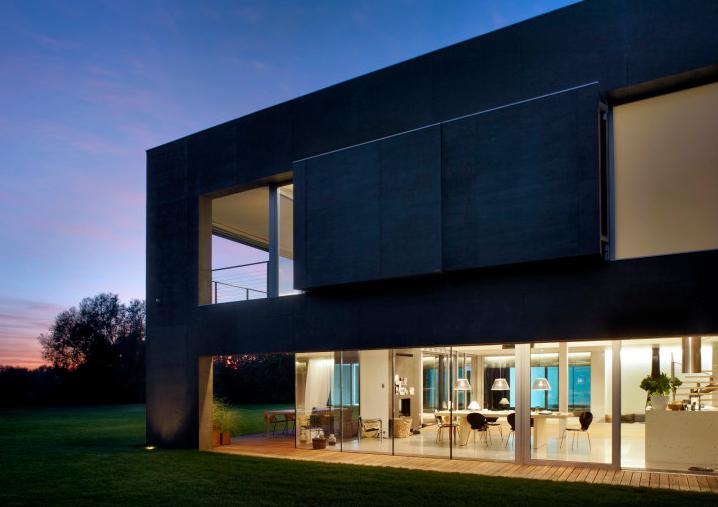

They are not the only mobile elements of the building. Apart from these, there are large shutters, all 2.8 m high, with a width ranging up to 3.5 m, opening up to 180 degrees. The southern elevation is closed by an enormous roll-down gate of 14 and 6 m manufactured by a company normally supplying shipyards and air companies. It is made with white anodized aluminum which makes it possible to function as a movie projection screen.

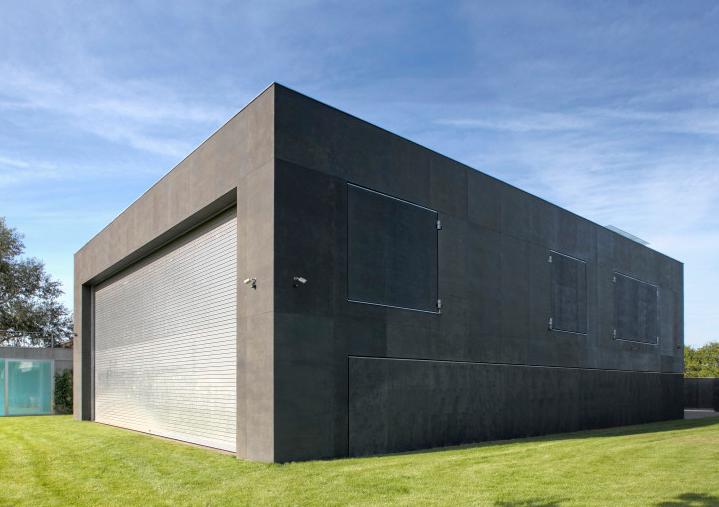

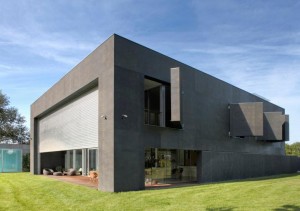

Safe House 15 - Interior Architecture Art Safe House 16 - Interior Architecture Art

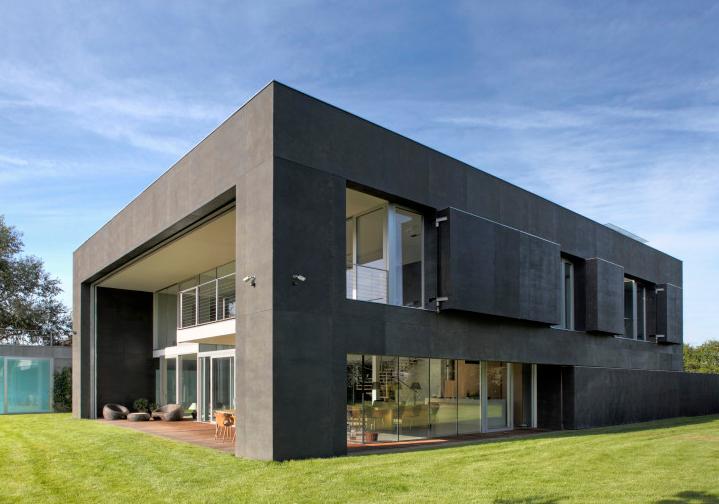

Safe House 17 - Interior Architecture Art

Safe House 18 - Interior Architecture Art















  Safe House 31 - Interior Architecture Art

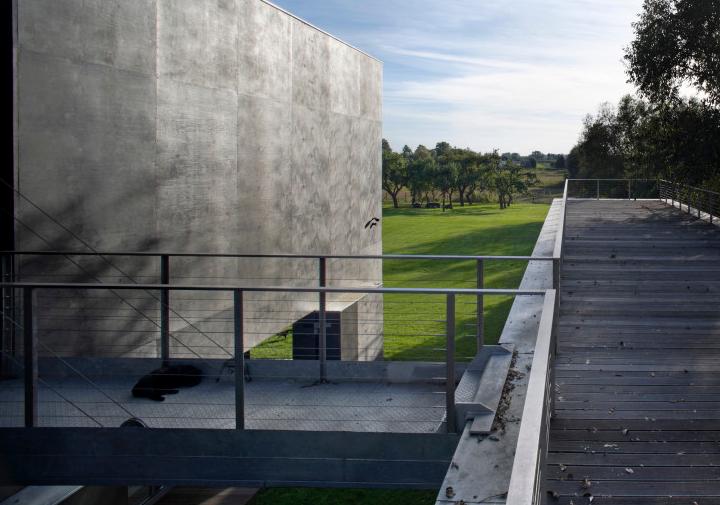

 In addition, there is also a drawbridge, falling down to 90 degrees, leading to the roof terrace above the swimming pool pavillion, from which a beautiful view opens for the surrounding space.

Safe House 19 - Interior Architecture Art

Safe House 20 - Interior Architecture Art

Safe House 21 - Interior Architecture Art

All the movable elements are based on built-in electronic engines, that guarantee safe operation. The whole building is a concrete monolith, while it’s mobile parts — for the sake of considerable size — are light steel trusses filled with mineral wool. As a result, the building is perfectly insulated when closed. The whole house as well as the mobile elements are clad with cement-bonded particleboards – Cetris and waterproof alder plywood fixed to a steel construction and painted with dark wood stain, which resembles the wood widely found on the surrounding houses and barns, and makes it fit well into the rural landscape.



… to Organic

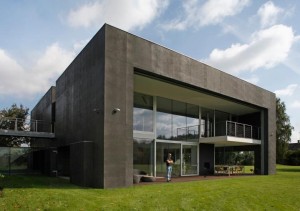

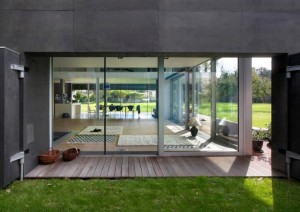

Once the house opens, it’s bright and spacious interior merges extensively with the garden. Wide glazings behind the movable walls let the building acquire energy during the day (winter) or prevent the sun’s heat from going into the house (summer). At night, when the house is closed, the thick outer layer helps the building to accumulate the gained energy. Such a solution together with the hybrid heat system (most of the energy is gained from renewable sources — heat pump and solar systems supported with gas heating) and mechanical ventilation with heat recovery makes the house become an intelligent passive building. Every day the house acts in a similar way — it wakes up every morning to close up after the dusk. This routine reminds of the processes occurring in nature — the house resembles a plant in its day and night cycle.

Safe House 22 - Interior Architecture Art

Safe House 23 - Interior Architecture Art

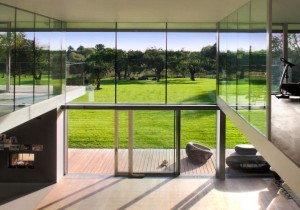

Safe House 24 - Interior Architecture Art

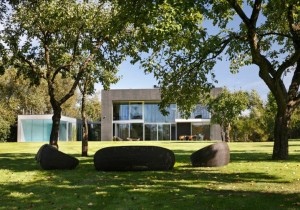

Safe House 25 - Interior Architecture Art

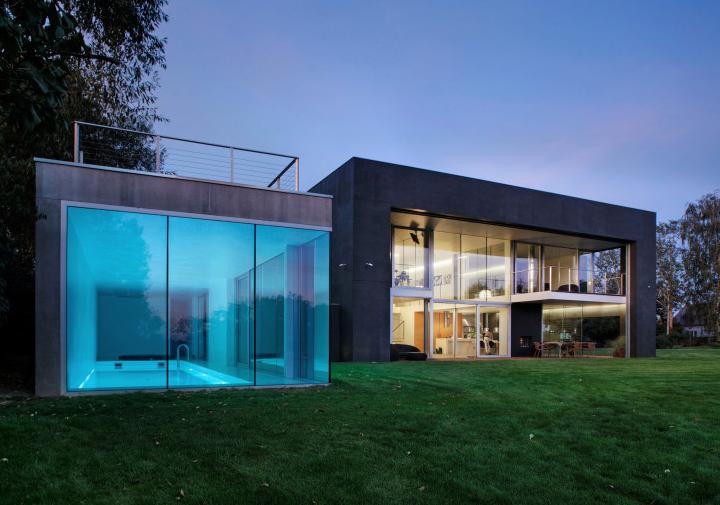

Safe House 26 - Interior Architecture Art

Safe House 27 - Interior Architecture Art













Safe House 28 - Interior Architecture Art

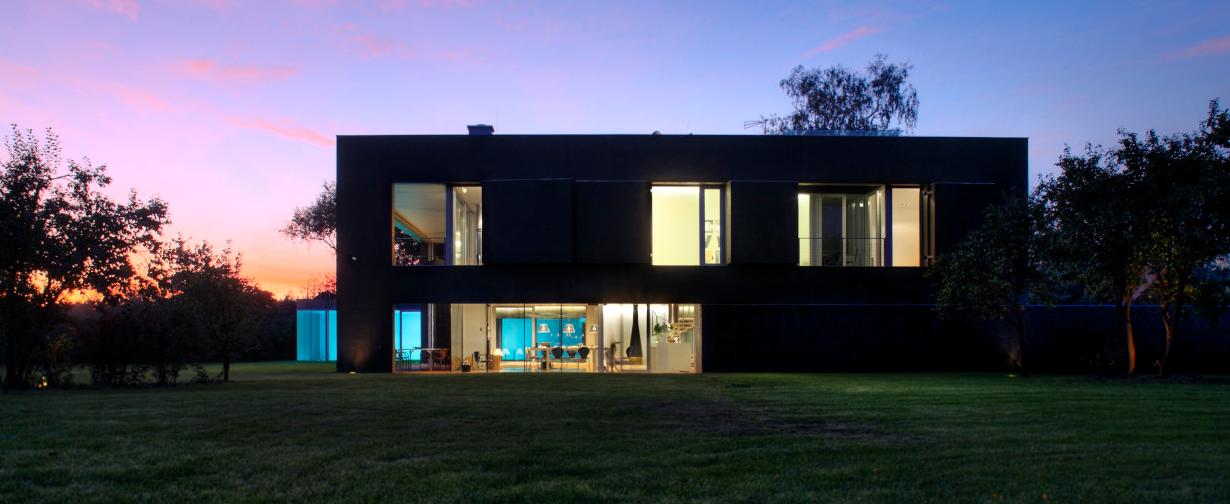

Safe House 29 - Interior Architecture Art

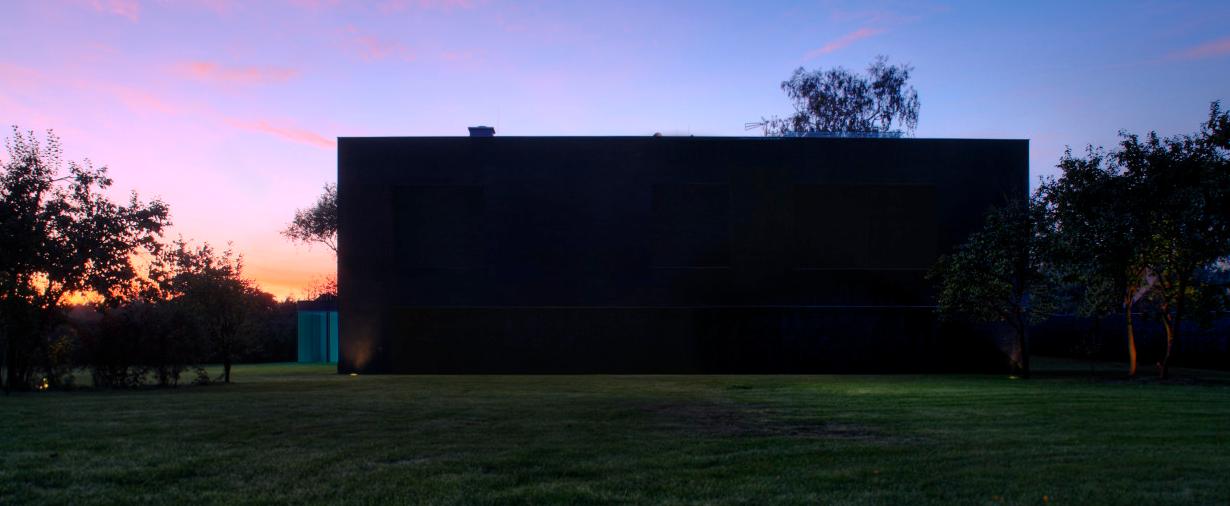

Safe House 30 - Interior Architecture Art



New Type Of Building

The sliding walls are not dependent on the form of the building. That is why this patent can be applied to both modern and traditional, single- and multi – storeyed houses covered with roofs of different geometry. This universal solution we came up with gives a new type of building where not the form but the way of functioning is the most important. The name: “Safe House” gains a new meaning now.
